The main purpose of the smoke generator is hot and cold smoking of products and semi-finished products exclusively in combination with other heating equipment (thermostat and electric heater) installed in a smoking locker equipped with a chimney.

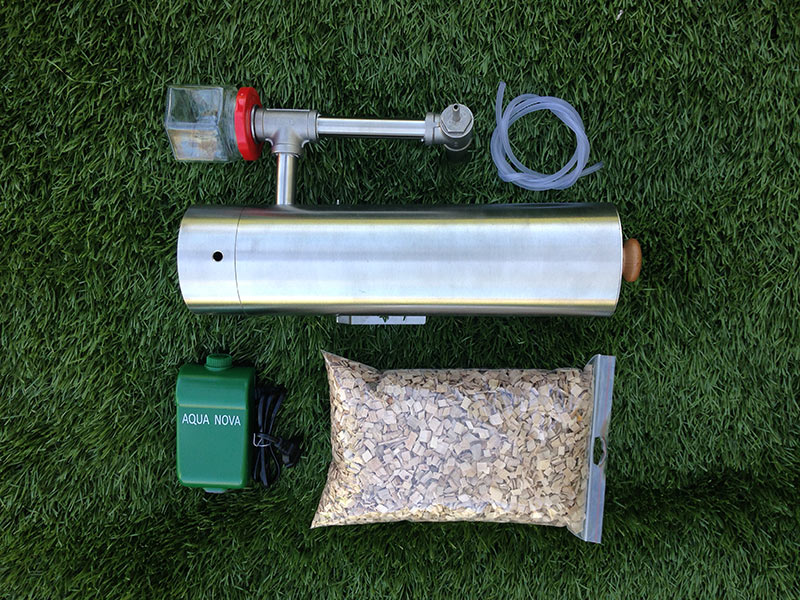

Technical description

The main purpose of the smoke generator is hot and cold smoking of products and semi-finished products exclusively in combination with other thermal equipment (thermostat and electric heater) installed in a smoking cabinet locker with a chimney.

General instructions

The compressor of the smoke generator operates from an electrical network with a voltage of 220V and consumes 4 watts power.

The smoke generator is designed for use in the open air, as smoke is emitted during chip smoldering.

The smoke generator is installed at a distance of at least 500 mm from flammable objects.

During operation, the smoke generator (especially the ash pan) is heated to a high temperature, which can cause burns if mistreated or violate safety regulations. In this regard, the smoke generator must be operated with extreme care and properly. When removing the ash pan, it is recommended to use fireproof gloves or wait for the smoke generator to cool down completely.

Measures should be taken to excluding children’s access to the smoke generator during his work!

The manufacturer shall not be liable for causing harm to people or objects caused by not observing the above prescriptions or by interfering with any part of the equipment or using non-original spare parts and self-made modifications of the product.

Specifications

Safety and fire safety requirements.

Before you turn on the compressor in the network, you must ensure the integrity of the housing parts of the smoke generator and electrical wiring. Operation with damaged housing or electrical wiring is not permitted.

ATTENTION! All work related to maintenance, repair and installation is carried out with the compressor disconnected from the power grid and the cooled smoke generator.

ATTENTION! When opening the smoke chamber, smoke and steam may be emitted.

The smoke generator refers to products that work under supervision. It is strongly recommended not to leave the smoke generator unattended for more than 120 minutes.

It is strictly forbidden:

Use the smoke generator for other purposes.

- Allow people under 18 years of age/ or not trained how to handle with smoke generator.

- Leave the smoke generator on the network unattended.

- Allow the power cord or silicone tube supplying air from the compressor to the heated parts of the smoke generator.

- Operate the smoke generator with a damaged electrical cord or socket.

Note: Be sure to follow the hygienic rules and conditions for the preparation, use and storage of food! IN NON-COMPLIANCE WITH THE ABOVE RULES, PRODUCT CLAIMS ARE NOT ACCEPTED.

Device and principle of operation

- When firing the smoke generator, it is necessary to turn on the compressor for maximum power (if necessary, reduce the amount of smoke, the compressor can be switched to a smaller air supply, after 10–20 minutes).

Recommendations for use

Smoke material

Use only healthy, non-moldy wood chips from deciduous trees: cherry, oak, alder, beech, apricot, plum, cherry, apple. Chips should be clean and dry (up to 15% moisture). Do not use wood chips or painted wood.

Possible causes of poor smoke

Possible causes of poor smoke in the smoke generator:

Too low power output is set

Lack of power in the network, broken portable socket or compressor is broken.

Too wet chips, which quickly goes out.

In the smoke chamber there is no chimney for the smooth removal of smoke from the smokehouse.

Low atmospheric pressure, which prevents natural smoke.

Loose fit of the parts of the smoke generator, resulting in deterioration of thrust and smoldering process
